Full Auto Laminator

High-speed machine on the same level as a printing machine, Outstanding operation function and wide adaptability

The best professional automatic high-speed laminator whose performance and the functions are excellent.

JOL640 Super pro

\Open pricing for both sides pouch process
\Open pricing for one side PP process
\Open pricing for both ways of process

Products catalogue (PDF)

Dimensions of machine	1070(W)×1230(H)×2500(D)mm
Weigh	360kg （both sides pouch process）
Power	AC200V･50/60Hz
Electric Power Consumption	5KW
Maximum width of laminating film	640mm

This is adjustable to automatic PP processing laminator either on one side or on both sides by changing the cutter or the feeder. (A combination of each function is adjustable as well.) Automatic PP processing in different positions on both sides of a Z folded open postcard is possible.

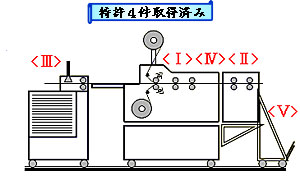

<Ⅰ>

laminator （main frame）
① Infrared type heat roller ＋ pull roll
②①＋ pre heat roller
③ ① ＋ ② ＋ heater enable detects finishing temperature on discharge side

<Ⅱ>

Auto cutter part
① Single cutter （stop & cut style）
② Double cutter （non stop cutter style・front and back individual cut）
③ Burster cutter（OPP style）

<Ⅲ>

Feeder part
① Manual feeder & angle feeder type
② Automatic paper feeder & angle feeder full auto type

<Ⅳ>

Rewinding device part
① on/off switch option for separator rewinding device that is compatible with cold laminating film

<Ⅴ>

Finisher part
① on/off switch option for rewinding device for processed goods on discharge side

Basic specifications of the laminator

Full opened upper roller unit (both heater roll and pull roll) for simple trouble shooting
The side slitter is a simple structure using a blade that makes it direct with easy operation. Also curling on an edge is prevented by having an axis.
The pull roller is self-pressing type. It is a highly qualified laminator with slip and pressure balance between rolls in the front and the rear also great maintenance skill.
Clearance setting (up to 9mm) is possible for heat roller. Easy removable pull roll, also board lami processing is possible.
